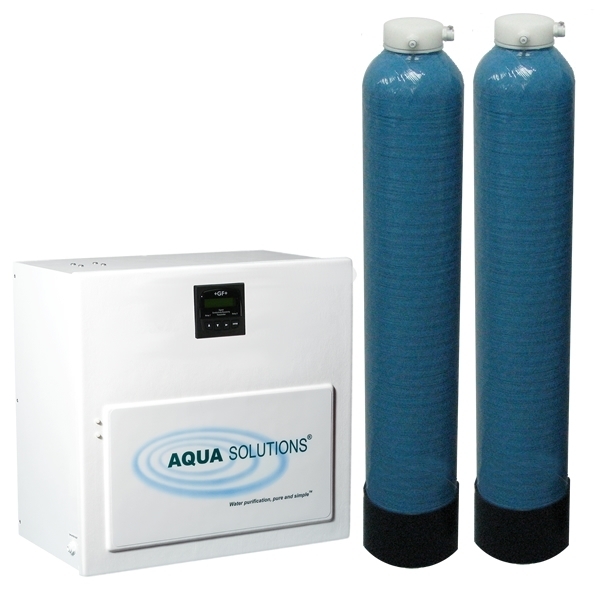

Model: 2036AU - Analytical Grade Type I DI System

This AQUA SOLUTIONS unit operates on ordinary tapwater. For pre-treated water operations, see Model: 2035AU.

Laboratory water purification systems are also available with a built-in Dual wavelength UV Oxidizer/Sterilizer (Model: 2036AL).

The Purification Kit Number 2635M1T is required to ensure optimal performance of this laboratory water purification system.

This system produces Ultrapure 18.2 Megohm-cm Reagent Grade DI Water at a flow rate of 8-12 LPM. This unit is utilized in operations using water pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids). Type I Ultrapure water is instantly available on demand up to 7-10 feet from the system via the included remote dispensing valve with 0.22-Micron absolute final filter. The cabinet can be bench, shelf or wall-mounted at no extra charge.

More Information

All AQUA SOLUTIONS Analytical Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.

Features and Benefits

  • 12,000 Grains as CaCO3 to a 0.02-Megohm end point
  • Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
  • Ultrapure water is available on demand up to 7 ft. from the system via the included remote dispenser. Part # 2700-DISP-R
  • Final Filtration is 0.22 micron (absolute) capsule - Part # - DC2022
  • This item is on our GSA Contract # GS-07F-5799R
  • Two (2) year system warranty (US & Canada only)
  • Made in USA

Pure Water Specifications

Resistivity 18.2 Megohm-cm - Ultrapure
Conductivity 0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Details Analytical - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water
TOC Reduces TOC levels to <5 PPB and prevents the growth of microorganisms within the system
Flow Rate Details 8-12 Liters/minute
Particulates 0.1-Micron
Bacteria < 1 cfu/ml
Flow Rate 8-12 LPM

Feed Water

Feed Water Quality For operation on water that has been pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids)
Water Connection User supplied 1/2" NPTF valve (1/4" Tube X 1/2" NPTM fittings included with system)
Inlet Connection 1/2" Tube fitting (20 ft. of tubing supplied with system)

Optional Upgrades

UV2006X-2 Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to
(2) UF2000 Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase

System Specifications

Cabinet Dimensions Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Mounting Bench, Shelf, or Wall (no additional charge)
Operating Weight 75 - 100 lbs (34 - 45 kg) cabinet only
Input Power Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacle within 5' of the right side of the system cabinet
System Power Source Switching power supply - 12 VDC at 2.5 Amps
Minimum Inlet Pressure 30 psi (2 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total shipping weight 50 lbs (23 kg)

Consumables

2635M2L Required Purification Kit - Includes two 2613TO High purity, High capacity, Low TOC DI modules, a CC1050 Carbon Pre-filter, and a DC2022 0.22-Micron Final Filter
UV2006LS-2 UV Sterilizer Lamp
DC2002 0.1-Micron Final Filter
CC2000 1-Micron Activated Carbon Prefilter Capsule
