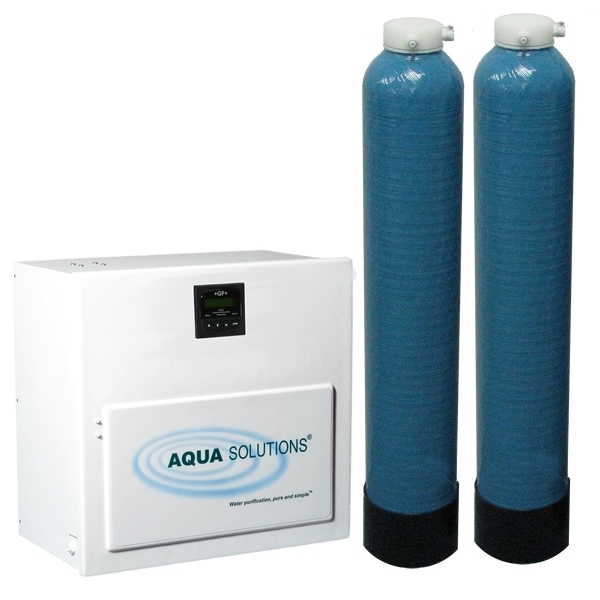

Model: 2036AL - Analytical Grade Type I DI System

This system produces Ultrapure 18.2 Megohm-cm Reagent Grade DI Water at a flow rate of 8-12 LPM.

This AQUA SOLUTIONS unit operates on pretreated water. For ordinary tapwater operations see Model: 2035AL.

The Purification Kit Number 2635M1T is required to ensure optimal performance of this laboratory water purification system.

This system is used with water pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids). Type I Ultrapure water is instantly available on demand up to 7-10 feet from the system via the included remote dispensing valve with 0.22-Micron absolute final filter. The built-in dual wavelength UV Oxidizer/Sterilizer reduces TOC levels to < 5 PPB, prevents the growth of microorganisms within the system, and alerts you when it is time to change the UV lamp.

More Information

All AQUA SOLUTIONS Analytical Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.

Features and Benefits

  • Made in the USA
  • 12,000 Grains as CaCO3 to a 0.02-Megohm end point
  • Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
  • Ultrapure water is available on demand up to 20 ft. from the system via the included remote dispenser. Part # 2700-DISP-R
  • Final Filtration is 0.22 micron (absolute) capsule - Part # - DC2022
  • This item is on our GSA Contract # GS-07F-5799R
  • Two (2) year system warranty (US & Canada only)

Pure Water Specifications

Resistivity 18.2 Megohm-cm - Ultrapure
Conductivity 0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Details Analytical - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water
TOC < 5-PPB - A built in dual wavelength UV Oxidizer/Sterilizer reduces TOC levels to
Flow Rate Details 8-12 Liters/minute
Particulates 0.1-Micron
Bacteria < 1 cfu/ml
Flow Rate 8-12 LPM

Feed Water

Feed Water Quality For operation on water that has been pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids)
Water Connection User supplied 1/2" NPTF valve (1/4" Tube X 1/2" NPTM fittings included with system)
Inlet Connection 1/2" Tube fitting (20 ft. of tubing supplied with system)

Optional Upgrades

(2) UF2000 Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase

System Specifications

Cabinet Dimensions Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Mounting Bench, Shelf, or Wall (no additional charge)
Operating Weight 75 - 100 lbs (34 - 45 kg) cabinet only
Input Power Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacle within 5' of the right side of the system cabinet
System Power Source Switching power supply - 12 VDC at 2.5 Amps
Minimum Inlet Pressure 30 psi (2 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total shipping weight 50 lbs (23 kg)

Consumables

2635M2L Required Purification Kit - Includes two 2613TO High purity, High capacity, Low TOC DI modules, a CC1050 Carbon Pre-filter, and a DC2022 0.22-Micron Final Filter
UV2006LX-2 UV Oxidizer/Sterilizer Lamp
DC2002 0.1-Micron Final Filter
CC2000 1-Micron Activated Carbon Prefilter Capsule
