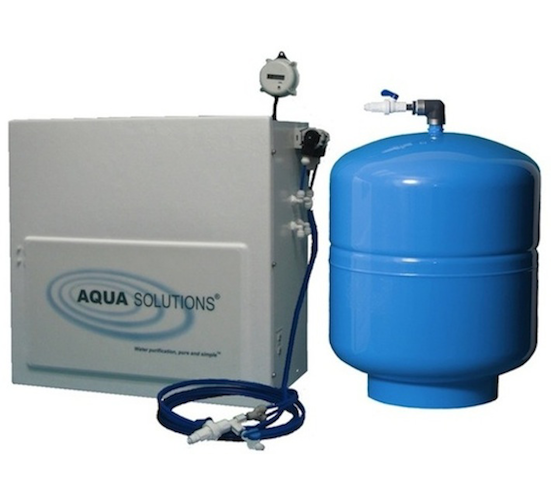

High Capacity Type II RO+DI System for Any Quality Tap Water
This compact, combination Reverse Osmosis plus Type II DI System is for operation on virtually any quality tap water, containing up to 1,000 PPM of TDS (total dissolved solids).The 20-LPH reverse osmosis portion of this system reduces operating costs by economically removing ~95% of the contaminants from the incoming tap water.
The Type II DI portion of this system produces 2-15 Megohm-cm water at a flow rate of 4-5 Liters/minute and will provide DI water to a glassware washer via the storage tank at up to 20-Liters/Minute.
DI water is continually recirculated to maintain water purity and reduce the risk of bacterial contamination. The system has a 1-year warranty, is made in the USA, and can be bench, shelf or wall mounted. This system includes a 42-Lliter pressurized tank for storing the DI purified water that is used by the glassware washer .
All AQUA SOLUTIONS' Type II Systems produce purified water that exceeds ASTM, CAP and CLSI specifications for Type II reagent grade water.
Features and Benefits
- The systems price includes two purification modules: one installed and one spare.
- Made in the USA.
- 6,000 Grains Ion Exchange Capacity
- Continuos recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system.
- Includes LCD readout conductivity monitor with adjustable setpoint and flashing red LED alarms.
- GSA Contract# GS-07F-5799R
- Built in Reverse Osmosis pretreatment lowers operating cost by economically removing 95-98% of the contaminants from the tap water.
- One (1) year warranty.
Pure Water Specifications
Resistivity | 2-15 Megohm-cm @ 25°C |
Conductivity | 0.5 - 0.067 MicroSeimens/cm |
Pure Water Grade | Type II |
Flow Rate | 4-5 LPM |
Feed Water
Feed Water Quality | Tap Water |
Water Connection | User supplied 1/4" or 3/8" NPTF valve (3/8" Tube X 1/4" NPTM & 3/8" NPTM fittings included with system) |
Inlet Connection | 1/4" Press-in Tube Fitting |
Features and Benefits
Purification Kit | N/A |
Purification DI Modules | The System price includes three purification modules: two installed and one spare |
Country of Origin | Made in the USA |
Recirculation | Continous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system. |
Purity Sensor | Includes LDC readout conductivity monitor with adjustable setpoint and flashing red LED alarm. |
Ion Exchange Capacity | 6,000 Grains |
Warranty | 1 Year |
Certification | N/A |
GSA | This item is on our GSA Contract #GS-07F-5799R |
Lower Operating Costs | Built in Reverse Osmosis pretreatment lowers operating cost by economically removing 95-98% of the contaminants from the tap water |
No monthly rental charges | You purchase and own the system hardware at a reasonable cost. |
No installation charges | The system is so easy to install, you can do it yourself. |
No service charges | You can install the spare DI tank yourself, whenever you need it - even on weekends! |
It puts you in control | If the DI tank exhausts in the middle of an experiment, or during a weekend, you can install the spare tank. |
Competitively priced |
Optional Upgrades
2700N | Remote Dispenser kit - non-recirculating type - with 0.1 micron final filter capsule |
2700N-NFC | Remote Dispenser kit - non-recirculating type - no final filter capsule |
2700R | Remote Dispenser kit - recirculating type - with 0.1 micron final filter capsule |
2701-DISP | DI Spray gun 1/4" NPTF inlet and spray pattern outlet 1-GPM |
2701-DISP-6 | DI Spray gun 3/8" NPTF inlet and spray pattern outlet 1-GPM |
2618DI | 7" x 20", 3000 Grain, 1/4ft³ Type 2 DI module for expansion or replacement |
2635DI | N/A |
CH1004-PF | 10" Pre-filter assembly with 5-Micron sediment filter |
DC2002 | 1 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2004 | 2 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2022 | High flow 0.22-Micron (absolute) Filter Capsule |
UV2006S | UV Sterilizer - Prevents the growth of microorganisms within the system. |
UF2000 | Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase |
ROT-200TU-130 | Tank upgrade: Increases storage capacity from 130 to 200 Liters |
ROT-200TU-042 | Tank upgrade: Increases storage capacity from 42 to 200 Liters |
ROT-200 | 200-Liter presurized storage tank with valve assembly |
System Specifications
DI Modules | N/A |
Cabinet dimension | Width - 20" (508 mm), Depth - 12" (305 mm) Height - 20" (508 mm) |
Mounting | Bench, Shelf, or Wall (no additional charge) |
Operating weight | 75 - 100 lbs (34-45 kg) cabinet only |
Input Power | Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacle within 5' of the right side of the system cabinet |
System power source | Switching power supply - 12 VDC at 2.5 Amps |
Minimum Inlet Pressure | 10 PSI (0.67 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total Shipping Weight | 100-150 lbs (45-68 kg) |
DI Module Dimensions | Diameter 7" (178mm) Height 37" (940mm) |
Consumables
2613DIR | N/A |
2618DIR | Type 2 Resin Refill for 2618DI Module (Exchange) |
2635DIR | N/A |
CC1050 | 10" 1-Micron Activated Carbon Prefilter |
CN1050MP | 10" 5-Micron Sediment Pre-Filter - For use with optional CH1004-PF |
2212H01 | N/A |
2613H40 | N/A |
2613H40-H | N/A |
