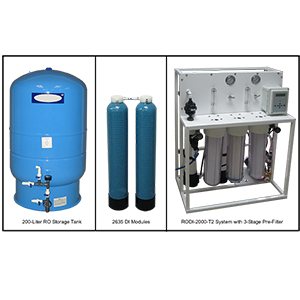

Model: RODI-2000-03T2 High Flow Type II DI System with Built-in RO Pre-Treatment
The 2-GPM reverse osmosis portion of this system reduces operating costs by economically removing ~97% of the contaminants from the incoming tap water. The RO water is stored in an included 200-Liter pressurized tank that prevents the risk of airborne contamination and eliminates the need for additional feed pumps and tank filters.
The Type II portion of this system produces 2-15 megohm-cm pure water at a flow rate of 8-12 Liters/minute and includes two installed High Purity/High Capacity DI Modules and one spare DI Module. It features continuous recirculation to maintain maximum water purity. Therefore, pure water is instantly available on demand. The system can be setup to feed a single dispensing point or multiple dispensing points via a small (200 linear foot) circulation loop. A variety of optional faucets, valves, and dispensers are available for use with the system.
A digital Conductivity meter is used to monitor the DI water quality. The meter has a flashing red LED that alerts the user when the water quality drops below 0.48 MicroSiemen (2 megohm-cm). The standard meter can be upgraded to digital Conductivity/Resistivity monitor with user adjustable set points. The upgraded meter (Part #: M-6AQ-UPGRADE) has Red and Green LED's to indicate that the water quality is above or below the acceptable purity. This upgrade is recommended if you require DI water with a resistivity of 2-15 megohm.
This affordable lab water system is simple to install and is easily maintained by the user.
The system has a 1-year warranty and is proudly made in the USA.
This combination Reverse Osmosis System and Type II DI System is for operation on virtually any quality tap water that contains less than 1000 PPM total dissolved solids.
All AQUA SOLUTIONS' Type II Systems produce purified water that exceeds ASTM, CAP and CLSI specifications for Type II reagent grade water.
- Made in the USA.
- 12,000 Grains of Ion Exchange capacity (as CaCO3 to a 0.02-Megohm end point).
- Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system.
- One (1) year warranty.
Pure Water Specifications
Resistivity | 2-15 Megohm-cm @ 25°C |
Conductivity | 0.5 - 0.067 MicroSeimens/cm |
TOC | < 50-PPB |
Flow Rate | 8-12 Liters/minute(Daily volume is limited by RO Production and Storage Capacity) |
RO Water Specifications
RO Production | 2-Gallon/Minute |
Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids. |
Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
Inlet Connection | 3/4” NPTF or NPTM |
Features and Benefits
Country of Origin | Made in the USA |
Ion Exchange Capacity | 12,000 Grains (as CaCO3 to a 0.02 megohm end point) |
Recirculation | Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system. |
Warranty | 1 Year |
Optional Upgrades
UV2006S8 | UV Sterilizer - Prevents the growth of microorganisms within the system |
System Specifications
RO Membranes | One (1) Part # CR4040-HF4 |
Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
Mounting | Floor |
Operating Weight | 280 lbs (127 kg) Systems/Frame only |
Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
Minimum Inlet Pressure | 35 PSI (2.4 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total Shipping Weight | 500-600 lbs (227-272 kg) |
Consumables
CNBB7525MP | 20" 75/25-micron prefilter |
CNBB2005PP | 20" 5-micron prefilter |
CCBB1030 | 20" 3-micron activated carbon |
CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
2635DIR | Type 2 Resin Refill for 26358DI Module (Exchange) |
