Model: RODI-2000-03B - High Flow Type I Biological Grade RO+DI System

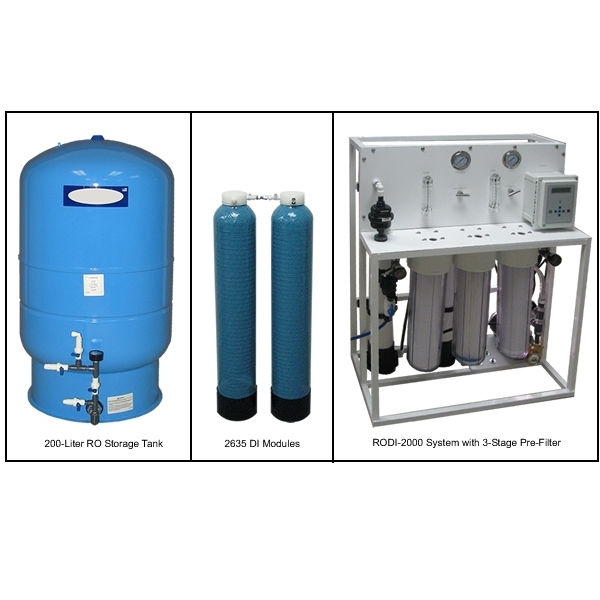

This combination Reverse Osmosis System and 8-12 Liters/minute DI System is utilized in operations involving virtually any quality tap water. The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly. The RO portion of the system will economically remove >97% of the contaminants from the incoming water, and will produce RO pretreated water at the rate of ~ 2-GPM.

The RO water is stored in a 200-Liter pressurized storage tank for use by the DI portion of the system. The pressurized tank eliminates the risk of airborne contamination and the need for a feed pump. The DI portion of the system produces up to 18.2-Megohm-cm water that is free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 8-12 Liters/minute.

DI water production is limited by the storage capacity and RO production. This system features continuous recirculation to maintain maximum water purity and a digital conductivity/resistivity meter to monitor the DI water quality. The meter has a green LED to indicate that the water quality is acceptable and a red LED that alerts the user when the water quality drops below the desired level.

More Information

All AQUA SOLUTIONS Biological Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water. Since ordinary tap water contains 5-25 times the impurities of pretreated water, these tap water systems have lower overall capacity than pre-treated water systems.

Features and Benefits:

  • Ultrafilter removes Pyrogen, Endotoxin, RNase and DNase
  • High ion exchange capacity (6,000-12,000 Grains) CaCO3 to a 0.02-Megohm end point
  • Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
  • Final filtration of 0.22 µm capsule (Part# - DC2022)
  • One (1) year system warranty
  • This item is on our GSA Contract # GS-07F-5799R
  • Made in USA

Pure Water Specifications

Resistivity 18.2 Megohm-cm - Ultrapure
Conductivity 0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I Water
TOC < 50-PPB
Flow Rate 8-12 Liters/minute
Particulates 0.1-Micron)
Bacteria < 1 cfu/ml
Pyrogen/Endotoxin < 0.001 EU/ml
DNase 4 pg/micron L

RO Water Specifications

RO Production 2-Gallons/Minute
Storage Capacity RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm)

Feed Water

Feed Water Quality For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids
Water Connection User supplied 3/4" line with 1/2" or 3/4" valve
Inlet Connection 3/4” NPTF or NPTM

Optional Upgrades

UV2006S8 UV Sterilizer - Prevents the growth of microorganisms within the system
UV2006X8 Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to
UF2000 N/A

System Specifications

RO Membranes Two (2) Part # CR4040-HF4
Frame Dimensions Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm)
Mounting Floor
Operating Weight 280 lbs (127 kg) Systems/Frame only
Input Power 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts
Minimum Inlet Pressure 35 PSI (2.4 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total shipping weight 500-600 lbs (227-272 kg)


CNBB7525MP 20" 75/25-micron prefilter
CNBB2005PP 20" 5-micron prefilter
CCBB1030 20" 3-micron activated carbon
CR4040-HF4 High Flow, Low Pressure TFC Membrane
2635M1T-A Required Purification Kit - Includes a 2635TO High Purity DI module and a DC2022 0.22-Micron Final Filter
2635M1L-A N/A
2635M2T-A Required Purification Kit - Includes two 2635TO High Purity, High capacity DI Modules and a DC2022 0.22-Micron Final Filter
2635M2L-A N/A
DC2022 0.22-Micron Final Filter
UV2006LS8 N/A
UV2006LX8 N/A
UF2000RM Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase
