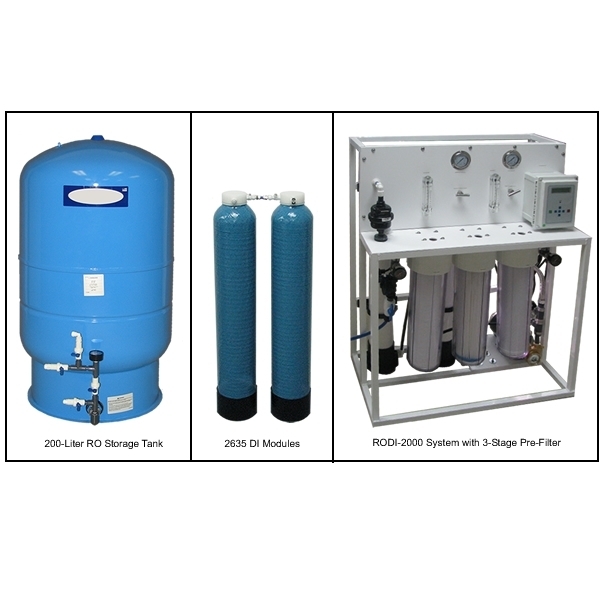

High Flow Type I Biological Grade RO+DI System With UV Sterilizer
This combination Reverse Osmosis System and 8-12 Liters/minute DI System is for operation on virtually any quality tap water. The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly.
The RO portion of the system will economically remove >97% of the contaminants from the incoming water, and will produce RO pretreated water at the rate of ~ 1-GPM. The RO water is stored in a 200-Liter pressurized storage tank for use by the DI portion of the system.The pressurized tank eliminates the risk of airborne contamination and the need for a feed pump. The DI portion of the system produces up to 18.2-Megohm-cm water that is free of Pyrogen, Endotoxin, RNase, and DNase at a flow rate of 8-12 Liters/minute. DI water production is limited by the storage capacity and RO production.
This system features continuous recirculation to maintain maximum water purity and a digital conductivity/resistivity meter to monitor the DI water quality. The meter has a green LED to indicate that the water quality is acceptable and a red LED that alerts the user when the water quality drops below the desired level. A built-in UV Sterilizer prevents the growth of microorganisms within the system and alerts the user when it is time to change the lamp.
All AQUA SOLUTIONS' Analytical Grade Type I DI Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water. Since ordinary tap water contains 5-25 times the impurities of pretreated water, these tap water systems have lower overall capacity than the pretreated water systems.
Features and Benefits:
- Made in the USA.
- Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase
- Dual wavelength - Reduces TOC levels to
- 6,000 - 12,000 Grains as CaCO3 to a 0.02-Megohm end point.
- Continuos recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system.
- Dispensing value included.
- 0.22-micron (absolute) capsule - Part# - DC2022
- One (1) year warranty.
Pure Water Specifications
| Resistivity | 18.2 Megohm-cm - Ultrapure |
| Conductivity | 0.056 MicroSeimens/cm - Ultrapure |
| Ultrapure Grade | Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I Water. |
| TOC | < 50-PPB |
| Flow Rate | 8-12 Liters/minute |
| Particulates | 0.1-Micron) |
| Bacteria | |
| Pyrogen/Endotoxin | < 0.001 EU/ml |
| RNase | |
| DNase |
RO Water Specifications
| RO Production | 1-Gallon/Minute |
| Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
| Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids. |
| Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
| Inlet Connection | 3/4” NPTF or NPTM |
Features and Benefits
| Country of Origin | Made in the USA |
| Ultrafilter | Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase |
| UV Oxidizer/Sterilizer | Dual wavelength - Reduces TOC levels to |
| Ion Exchange Capacity | 6,000 - 12,000 Grains as CaCO3 to a 0.02-Megohm end point |
| Recirculation | Continuos recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system. |
| Dispensing Value | Included |
| Final Filtration | 0.22-micron (absolute) capsule - Part# - DC2022 |
| Warranty | 1 Year |
Optional Upgrades
| UV2006S8 | N/A |
| UV2006X8 | Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to |
| UF2000 | N/A |
System Specifications
| RO Membranes | One (1) Part # CR4040-HF4 |
| Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
| Mounting | Floor |
| Operating Weight | 280 lbs (127 kg) Systems/Frame only |
| Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
| Minimum Inlet Pressure | 35 PSI (2.4 bar) |
| Maximum Inlet Pressure | 100 PSI (6.6 bar) |
| Total shipping weight | 500-600 lbs (227-272 kg) |
Consumables
| CNBB7525MP | 20" 75/25-micron prefilter |
| CNBB2005PP | 20" 5-micron prefilter |
| CCBB1030 | 20" 3-micron activated carbon |
| CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
| 2635M1T-A | Required Purification Kit - Includes a 2635TO High Purity DI module and a DC2022 0.22-Micron Final Filter |
| 2635M1L-A | N/A |
| 2635M2T-A | Required Purification Kit - Includes two 2635TO High Purity, High capacity DI Modules and a DC2022 0.22-Micron Final Filter |
| 2635M2L-A | N/A |
| DC2022 | 0.22-Micron Final Filter |
| UV2006LS8 | UV Sterilizer Lamp |
| UV2006LX8 | N/A |
| UF2000RM | Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase |
