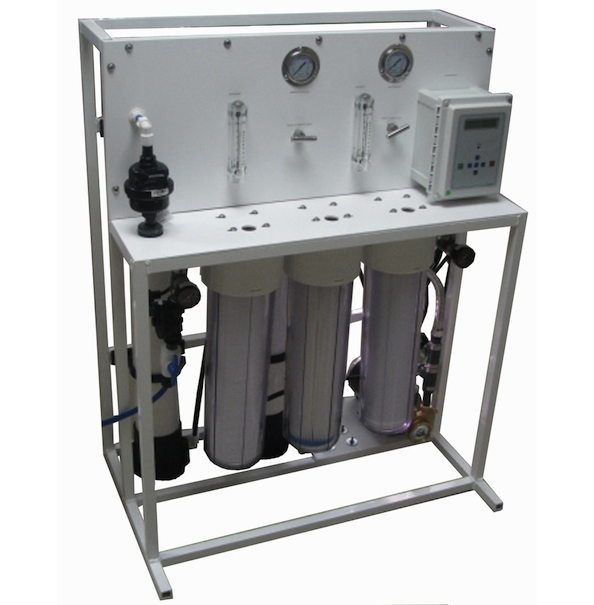

Model RODI-2000-01-T2DW
This combination Reverse Osmosis System and 8-12 Liters/minute DI System is for operation on virtually any quality tap water.
The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly.
The RO portion of the system will economically remove >97% of the contaminants from the incoming water, and will produce RO pretreated water at the rate of ~ 2-GPM.
The RO water is stored in a 200-Liter pressurized storage tank for use by the DI portion of the system.The pressurized tank eliminates the risk of airborne contamination and the need for a feed pump.
The DI portion of the system produces 2-15 Megohm-cm water at a flow rate of 8-12 Liters/minute. DI water production is limited by the storage capacity and RO production.
This system features continuous recirculation to maintain maximum water purity and a digital conductivity/resistivity meter to monitor the DI water quality.
The meter has a green LED to indicate that the water quality is acceptable and a red LED that alerts the user when the water quality drops below the desired level.
All AQUA SOLUTIONS' Type II Systems produce purified water that exceeds ASTM, CAP and CLSI specifications for Type II reagent grade water.
Features and Benefits
- Made in the USA.
- 6,000 - 12,000 Grains as CaCO3 to a 0.02-Megohm end point
- CContinuos recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system.
- Dispensing value included.
- 0.22-micron (absolute) capsule - Part# - DC2022
- One (1) year warranty.
Pure Water Specifications
| Resistivity | 2-15 Megohm-cm @ 25°C |
| Conductivity | 0.5 - 0.067 MicroSeimens/cm |
| Ultrapure Grade | N/A |
| TOC | < 50-PPB |
| Flow Rate | 8-12 Liters/minute(Daily volume is limited by RO Production and Storage Capacity) |
| Particulates | ‹1/ml (›0.1-Micron) |
| Bacteria | N/A |
| Pyrogen/Endotoxin | N/A |
| RNase | N/A |
| DNase | N/A |
RO Water Specifications
| RO Production | 1-Gallon/Minute |
| Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
| Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids. |
| Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
| Inlet Connection | 3/4” NPTF or NPTM |
Features and Benefits
| Country of Origin | Made in the USA |
| Ultrafilter | N/A |
| UV Oxidizer/Sterilizer | N/A |
| Ion Exchange Capacity | 6,000 - 12,000 Grains as CaCO3 to a 0.02-Megohm end point |
| Recirculation | Continuos recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system. |
| Dispensing Value | included |
| Final Filtration | N/A |
| Warranty | 1 Year |
Optional Upgrades
| UV2006S8 | |
| UV2006X8 | N/A |
| UF2000 | N/A |
System Specifications
| RO Membranes | One (1) Part # CR4040-HF4 |
| Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
| Mounting | Floor |
| Operating Weight | 280 lbs (127 kg) Systems/Frame only |
| Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
| Minimum Inlet Pressure | 35 PSI (2.4 bar) |
| Maximum Inlet Pressure | 100 PSI (6.6 bar) |
| Total Shipping Weight | 500-600 lbs (227-272 kg) |
Consumables
| CNBB7525MP | 20" 75/25-micron prefilter |
| CNBB2005PP | 20" 5-micron prefilter |
| CCBB1030 | 20" 3-micron activated carbon |
| CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
| 2635DIR | Type 2 Resin Refill for 26358DI Module (Exchange) |
| 2635M1T-A | N/A |
| 2635M1L-A | N/A |
| 2635M2T-A | N/A |
| 2635M2L-A | N/A |
| DC2022 | N/A |
| UV2006LS8 | N/A |
| UV2006LX8 | N/A |
| UF2000RM | N/A |
