RO2122
×
RO2122

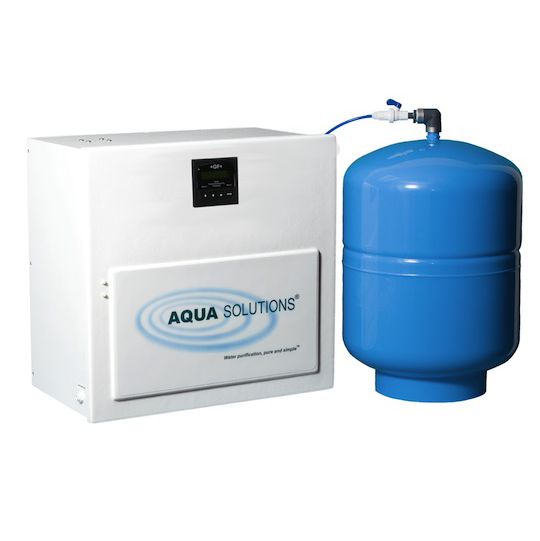

Model RO2122

This compact Laboratory Reverse Osmosis ("RO") System is for operation on virtually any quality tap water, containing up to 1,000 PPM of TDS.

It economically produces 20-Liters/hour of RO purified water by removing >95% of the contaminants in the incoming tap water.

The system includes a built-in, high-capacity activated carbon pre-filter and a 130-Liter pressurized tank to store the RO purified water.

The system features fully automatic operation and complete instrumentation. This 12 VDC system is certified by CSA for the US & Canada and CE marked for export to EU countries.

More Information

AQUA SOLUTIONS' Reverse Osmosis Pretreatment Systems include a pressurized RO storage tank, which eliminates the need for level controls, overflow piping, and transfer pumps.

Features and Benefits:

  • Made in the USA.
  • The systems includes 130-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump.
  • Built-in 1-Micron Activated Carbon
  • Built-in TDS Meter to monitor water quality
  • Certified by CSA for the US & Canada, CE marked for export to EU countiries.
  • One (1) year warranty

RO Water Specification

RO Production 20-Liters Per Hour
Rejection Rate (TDS) >95%

Feed Water

Feed Water Quality Tap water containing <1,000 PPM of TDS
Water Connection User supplied 1/4" or 3/8" NPTF valve (3/8" Tube X 1/4" NPTM & 3/8" Tube X 3/8" NPTM fittings included with system)
Inlet Connection 1/4" Tube fitting (20ft. of 1/4" of tubing supplied with system)

Features and Benefits

RO Production 20-Liters Per Hour
Pressurized Storage The system include 130-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump
Pre-filter Built-in 1-Micron Activated Carbon
Country of Origin Made in the USA
TDS Monitor The system has a built in TDS Meter to monitor water quality
Warranty 1 Year
Certification Certified by CSA for the US & Canaba, CE marked for export to EU countries
GSA N/A

Optional Upgrades

CH1004-PF 10" Pre-filter assembly with 5-Micron sediment filter
CH1004PAS 10" Anti-Scaling Prefilter Assembly
CH1016BB-2PF N/A
CH1016BB-3PF N/A
CH1016BB-3PF N/A
2700N Remote Dispenser kit - non-recirculating type - with 0.1 micron final filter capsule
2700N-NFC Remote Dispenser kit - non-recirculating type - no final filter capsule
DC2002 1 inch 0.1-Micron (absolute) Final Filter Capsule
DC2004 2 inch 0.1-Micron (absolute) Final Filter Capsule
DC2022 High flow 0.22-Micron (absolute) Filter Capsule
ROT-130TU-042 N/A
ROT-200TU-130 Tank upgrade: Increases storage capacity from 130 to 200 Liters
ROT-200TU-042 N/A

Pressurized Storage Tanks

ROT-200 N/A

Cone Bottom Tanks

ROT-060XP N/A
ROT-100XP N/A
ROT-200XP N/A
ROT-300XP N/A

System Specifications

RO Membranes Two (2) Part #CR1812H1
Cabinet Dimensions Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Frame Dimensions N/A
Mounting Bench, Shelf, or Wall (no additional charge)
Operating weight 75 - 100 lbs (34 - 45 kg) cabinet only
Input Power Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacles within 5' of the right side of the system cabinet
System power source 12 VAC Power supply
Minimum inlet pressure 25 PSI (1.7 bar)
Maximum inlet pressure 100 PSI (6.6 bar)
Total shipping weight 100-150lbs (45 - 68kg)

Consumables

CC1050 10" 1-Micron Activated Carbon Prefilter
CCBB1030 N/A
CCBB2030 N/A
CN1050MP 10" 5-Micron Sediment Pre-Filter - For use with optional CH1004-PF
CNBB1005PL N/A
CNBB15005MP N/A
CNBB17525MP N/A
CNBB2005PP N/A
CNBB2020PP N/A
CNBB27525MP N/A
CR1812H1 (2) 12" TFC Reverse Osmosis Replacement Cartridge
CR4014 N/A
CR4040-HF4 N/A
