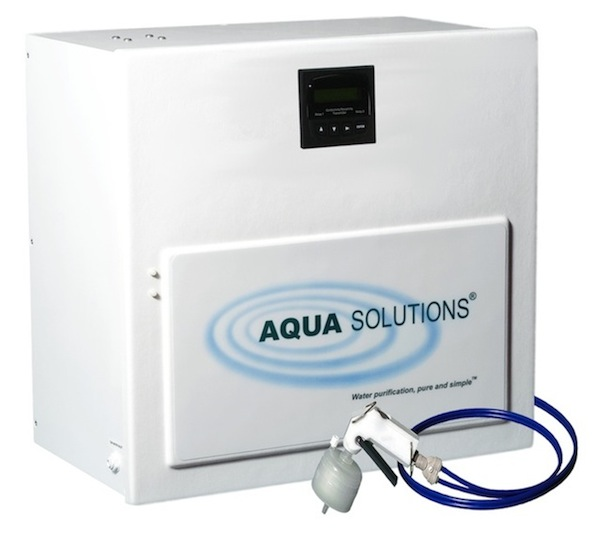

Model RO2006 Standard System
An AQUA SOLUTIONS RO system can effectively remove up to >95% of the contaminants in tap water, thereby reducing the operating cost of a DI system by more than 90-95%.
A single RO system can be used to pretreat the tap water feed for several Type I or Type II DI laboratory water purification systems, and/or point-of-use locations.
A Reverse Osmosis System should be considered under the following circumstances:
- Incoming tap water contains more than 170 parts per million (ppm) of total dissolved solids.
- DI water usage exceeds 40 liters per day on a Type II DI System.
- DI water usage exceeds 20 liters per day on a Type I DI System.
There are two criterias to consider when determining if a reverse osmosis pretreatment system is either required, or can be justified, based on cost savings:
- Can the DI system alone produce the desired quality and quantity of purified water that is needed for the applications at hand? IF NOT, AN RO PRETREATMENT SYSTEM IS REQUIRED.
- Would it cost more overall (including capital and operating costs over 1-3 years), to process the tap water via DI alone, or with a combination of RO plus DI? IF DI ALONE COSTS MORE, AN RO SYSTEM IS JUSTIFIED.
This compact Laboratory Reverse Osmosis ("RO") System is for operation on virtually any quality tap water, containing up to 1,000 PPM of TDS.
It economically produces 60-Liters/hour of RO purified water by removing >95% of the contaminants in the incoming tap water.
The system includes a built-in, high-capacity activated carbon pre-filter and a 130-Liter pressurized tank to store the RO purified water.
AQUA SOLUTIONS' Reverse Osmosis Pretreatment Systems include a pressurized RO storage tank, which eliminates the need for level controls, overflow piping, and transfer pumps.
Features and Benefits:
- RO production is 60-Liters Per Hour.
- Includes 130-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump.
- Made in the USA.
- The System has a built in TDS Meter to monitor water quality.
- One (1) year warranty.
Pure Water Specifications
Resistivity 25°C: | >2-Megohm-cm at 25°C |
Conductivity | >0.500 MicroSeimens/cm at 25°C |
Pure Water Grade | Type II |
Flow Rate Details | 3-LPM from DI modules and 20-LPM from storage tank |
Feed Water
Feed Water Quality | Tap water containing 1,000 PPM of TDS |
Water Connection | User supplied 1/4" or 3/8" NPTF valve (3/8" Tube X 1/4" NPTM & 3/8'" Tube X 3/8" NPTM fittings included with system) |
Inlet Connection | 3/8" Tube fitting (20 ft. of 3/8" of tubing supplied with system) |
Features and Benefits
RO Production | 60-Liters Per Hour |
Pressurized Storage | The included 130-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump. |
Pre-Filter | Required (please see "Optional Upgrades") |
Country of Origin | Made in the USA |
TDS Monitor Details | The System has a built in TDS Meter to monitor water quality. |
Warranty | 1 Year |
Optional Upgrades
CH1004-PF | 10" Pre-filter assembly with 5-Micron sediment filter |
CH1016BB-2PF | 10" 2-Stage Big Boy Prefilter Assy W/Pressure Gauges & Valves |
CH1016BB-3PF | 10" 3-Stage Big Boy Prefilter Assy W/Pressure Gauges & Valves |
CH2016BB-3PF | 20", 3-Stage Big Boy Prefilter Assembly |
2700N | Remote Dispenser kit - non-recirculating type - with 0.1 micron final filter capsule |
2700N-NFC | Remote Dispenser kit - non-recirculating type - no final filter capsule |
DC2002 | 1 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2004 | 2 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2022 | High flow 0.22-Micron (absolute) Filter Capsule |
UV2006S | UV Sterilizer - Prevents the growth of microorganisms within the system. |
ROT-200TU-130 | Tank upgrade: Increases storage capacity from 130 to 200 Liters |
ROT-200TU-042 | Tank upgrade: Increases storage capacity from 42 to 200 Liters |
ROT-200 | 200-Liter pressurized storage tank with valve assembly |
System Specifications
RO Membranes | Two (2) Part # CR1812H1 |
Cabinet Dimensions | Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm) |
Mounting | Bench, Shelf, or Wall (no additional charge) |
Operating Weight | 75 - 100 lbs (34 - 45 kg) cabinet only |
Input Power | Requires a 120 VAC electrical outlet within 5’ of the right side of the system. |
Minimum Inlet Pressure | 25 PSI (1.7 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total Shipping Weight | 100-150 lbs (45 - 68 kg) |
Consumables
CCBB1030 | 10" 3-Micron Big Boy Activated Carbon Cartridge (for use in optional CH1016BB-2PF or CH1016BB-3PF pre-filter assemblies) |
CNBB1005PL | 10" Big Boy 5-Micron Sediment Prefilter Cartridge (for use in optional CH1016BB-2PF or CH1016BB-3PF pre-filter assemblies) |
CNBB15005MP | 10" Big Boy 2-Stage 50/5 Micron Sediment Prefilter Cartridge (for use in optional CH1016BB-2PF or CH1016BB-3PF pre-filter assemblies) |
CNBB17525MP | 10" Big Boy 2-Stage 75/25 Micron Sediment Prefilter Cartridge (for use in optional CH1016BB-2PF or CH1016BB-3PF pre-filter assemblies) |
CNBB2005PP | 20" Big Boy 5-Micron Pleated Polypropylene Prefilter Cartridge (for use in optional CH2016BB-3PF pre-filter assembly) |
CNBB2020PP | 20" Big Boy 20-Micron Pleated Polypropylene Prefilter Cartridge (for use in optional CH2016BB-3PF pre-filter assembly) |
CNBB27525MP | 20" Big Boy 2-Stage 75/25 Micron Sediment Prefilter Cartridge (for use in optional CH2016BB-3PF pre-filter assembly) |
CR4014 | (1) RO Replacement Cartridge 4" X 14" TFC Low Pressure 250 -500 GPD |
