RO2000-03
×
RO2000-03

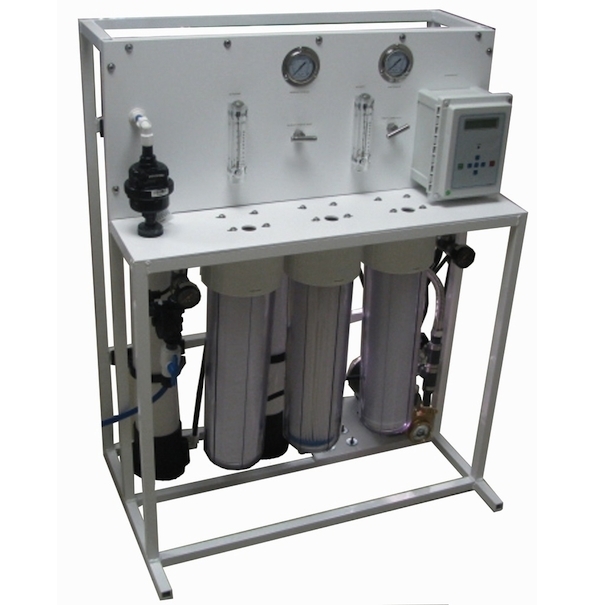

Model RO2000-03 High Flow

An AQUA SOLUTIONS RO system can effectively remove up to >95% of the contaminants in tap water, thereby reducing the operating cost of a DI system by more than 90-95%.

A single RO system can be used to pretreat the tap water feed for several Type I or Type II DI laboratory water purification systems, and/or point-of-use locations.

A Reverse Osmosis System should be considered under the following circumstances:

  • Incoming tap water contains more than 170 parts per million (ppm) of total dissolved solids.
  • DI water usage exceeds 40 liters per day on a Type II DI System.
  • DI water usage exceeds 20 liters per day on a Type I DI System.

There are two criteria to consider when determining if a reverse osmosis pretreatment system is either required, or can be justified, based on cost savings:

  • Can the DI system alone produce the desired quality and quantity of purified water that is needed for the applications at hand? IF NOT, AN RO PRETREATMENT SYSTEM IS REQUIRED.
  • Would it cost more overall (including capital and operating costs over 1-3 years), to process the tap water via DI alone, or with a combination of RO plus DI? IF DI ALONE COSTS MORE, AN RO SYSTEM IS JUSTIFIED.



This Reverse Osmosis ("RO") System is for operation on virtually any quality tap water, containing up to 1,000 PPM of TDS. The system produces RO purified water at the rate of 2,000 - 3,000 GPD (~2 - 2.8 GPM or 7.6 - 10.6 LPM) and economically removes >95% of the contaminants in the incoming tap water. The system has a built-in three stage sediment and activated carbon pre-filter assembly.

More Information

AQUA SOLUTIONS' Reverse Osmosis Pretreatment Systems include a pressurized RO storage tank, which eliminates the need for level controls, overflow piping, and transfer pumps.

Features and Benefits:

  • RO production is 2-Gallon Per Minute.
  • Built-in 3 Stage Pre-Filter Assembly: Includes 75/25-Micron Sediment, 5- Micron Sediment, & a 3-Micron Activated Carbon.
  • Made in the USA.
  • The sensor displays a Green LED when water quality is >2-Megohm-cm and a Red LED flashes when it’s time to change DI Modules.
  • One (1) year warranty.
  • This item is on our GSA Contract # GS-07F-5799R.

Pure Water Specifications

Resistivity 25°C: >2-Megohm-cm at 25°C
Conductivity >0.500 MicroSeimens/cm at 25°C
Pure Water Grade Type II
Flow Rate Details 6-LPM

Feed Water

Feed Water Quality Tap water containing 1,000 PPM of TDS
Water Connection User supplied 1/4" or 3/8" NPTF valve
Inlet Connection 3/4” NPTF.

Features and Benefits

RO Production 2-Gallon Per Minute
Pre-Filter Built-in 3 Stage Pre-Filter Assembly: Includes 75/25-Micron Sediment, 5- Micron Sediment, & a 3-Micron Activated Carbon
Country of Origin Made in the USA
TDS Monitor Details The sensor displays a Green LED when water quality is >2-Megohm-cm and a Red LED flashes when it’s time to change DI Modules.
Warranty 1 Year
GSA This item is on our GSA Contract # GS-07F-5799R

Optional Upgrades

CH1004-PF 10" Pre-filter assembly with 5-Micron sediment filter
2700N-NFC Remote Dispenser kit - non-recirculating type - no final filter capsule
DC2002 1 inch 0.1-Micron (absolute) Final Filter Capsule
DC2004 2 inch 0.1-Micron (absolute) Final Filter Capsule
DC2022 High flow 0.22-Micron (absolute) Filter Capsule
UV2006S UV Sterilizer - Prevents the growth of microorganisms within the system.
UF2000 Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase
ROT-200 200-Liter presurized storage tank with valve assembly

System Specifications

RO Membranes Two (2) Part # CR4040-HF4
Frame Dimensions Width - 36" (914mm), Depth - 23" (584mm) Height - 48" (1,219mm)
Input Power Requires a 120 VAC, single phase, 60 Hz, 20 Amp source of electrical power, and includes a 6' power cable.
Minimum Inlet Pressure 40 PSIG (2.8 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total Shipping Weight 78 lbs (35 kg)

Consumables

CCBB2030 20" 3-Micron Big Boy Activated Carbon Cartridge
CNBB2005PP 20" Big Boy 5-Micron Pleated Polypropylene Prefilter Cartridge
CNBB2020PP 20" Big Boy 20-Micron Pleated Polypropylene Prefilter Cartridge
CNBB27525MP 20" Big Boy 2-Stage 75/25 Micron Sediment Prefilter Cartridge
CR4040-HF4 (2) RO Replacement Cartridge 4" X 40" TFC Low Pressure1500-2000 GPD
