The AQUA SOLUTIONS' Model 2635S1-1/2 is also available in a Dual module version: Model 2536S2-1-2. Ultimately, dual-module systems cost less to operate.
This model is also available for high flow, high capacity applications such as glassware washing: Model 2635S2-DW.
AQUA SOLUTIONS' Type II DI lab water purification systems are designed from the ground up to be user-installable and user-serviceable!
This single tank 12-LPM Type II/III DI System is designed for applications that require up 80-Liters of Type II/III DI water/day, when fed tap water containing up to 170 PPM of total dissolved solids.

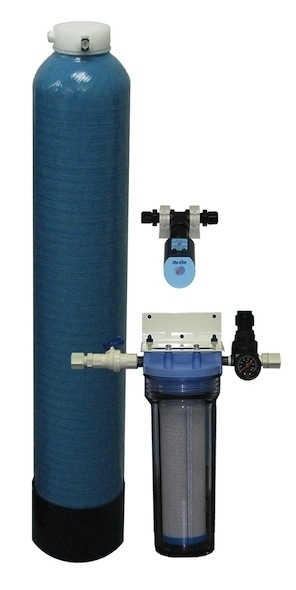

The system includes one installed plus one spare 7" (178mm) diameter by 37" (940mm) tall DI tanks, an activated carbon prefilter assembly with pressure regulator and gauge, and a purity monitor light.
More Information
All AQUA SOLUTIONS' Type II Systems produce purified water that exceeds ASTM, CAP and CLSI specifications for Type II reagent grade water.
Features and Benefits
The system includes two installed plus one spare DI module.
Made in the USA.
The sensor displays a Green LED when water quality is >2-megohm-cm and a Red LED flashes when it’s time to change DI Modules.
Ion Exchange Capacity of 6,000 Grains.
One (1) year warranty.
You purchase and own the system hardware at a reasonable cost.
The system is so easy to install, you can do it yourself.
You can install the spare DI tank yourself, whenever you need it - even on weekends!
If the DI tank exhausts in the middle of an experiment, or during a weekend, you can install the spare tank.
See for yourself - compare the total cost of our Type II/III DI systems with the competition.
Pure Water Specifications
Resistivity 25°C:
>2-Megohm-cm at 25°C
Conductivity
>0.500 MicroSeimens/cm at 25°C
Pure Water Grade
Type II
Flow Rate Details
12-LPM
Feed Water
Feed Water Quality
Tap water or RO pretreated water
Water Connection
User supplied 1/4" or 3/8" NPTF valve (3/8" Tube X 1/4" NPTM & 3/8'" Tube X 3/8" NPTM fittings included with system)
Inlet Connection
1/2" Tube fitting (20 ft.of 1/2" of tubing supplied with system)
Features and Benefits
Purification DI Modules
The system includes two installed plus one spare
Country of Origin
Made in the USA
Purity Sensor
The sensor displays a Green LED when water quality is >2-megohm-cm and a Red LED flashes when it’s time to change DI Modules.
Ion Exchange Capacity
6,000 Grains
Warranty
1 Year
GSA
This item is on our GSA Contract # GS-07F-5799R
No monthly rental charges
You purchase and own the system hardware at a reasonable cost.
No installation charges
The system is so easy to install, you can do it yourself.
No service charges
You can install the spare DI tank yourself, whenever you need it - even on weekends!
It puts you in control
If the DI tank exhausts in the middle of an experiment, or during a weekend, you can install the spare tank.
Competitively priced
See for yourself - compare the total cost of our Type II/III DI systems with the competition.
Optional Upgrades
2700N
Remote Dispenser kit - non-recirculating type - with 0.1 micron final filter capsule
2700N-NFC
Remote Dispenser kit - non-recirculating type - no final filter capsule
2701-DISP
DI Spray gun 1/4" NPTF inlet and spray pattern outlet 1-GPM
2701-DISP-6
DI Spray gun 3/8" NPTF inlet and spray pattern outlet 1-GPM
2635DI
7" x 37", 6000 Grain, 1/2 ft³ Type 2 DI module for expansion or replacement
CH1004-PF
10" Pre-filter assembly with 5-Micron sediment filter
DC2002
1 inch 0.1-Micron (absolute) Final Filter Capsule
DC2004
2 inch 0.1-Micron (absolute) Final Filter Capsule
DC2022
High flow 0.22-Micron (absolute) Filter Capsule
UV2006S
UV Sterilizer - Prevents the growth of microorganisms within the system.
Tank upgrade: Increases storage capacity from 130 to 200 Liters
ROT-200TU-042
Tank upgrade: Increases storage capacity from 42 to 200 Liters
ROT-200
200-Liter presurized storage tank with valve assembly
System Specifications
DI Modules
Includes one installed plus one spare 2635DI Type II Purifification Modules - 7" x 37", 6000 Grain, 1/2 ft³
Input Power
Requires a 110V outlet within 5 ft. of the purity sensor.
Minimum Inlet Pressure
25 PSI (1.7 bar)
Maximum Inlet Pressure
113 PSI (6.6 bar)
Total Shipping Weight
78 lbs (35 kg)
DI Module Dimensions
Diameter 7" (178mm) Height 37" (940mm)
Consumables
2618DIR
Type 2 Resin Refill for 2618DI Module (Exchange)
CC1050
10" 1-Micron Activated Carbon Prefilter
CN1050MP
10" 5-Micron Sediment Pre-Filter - For use with optional CH1004-PF
×
