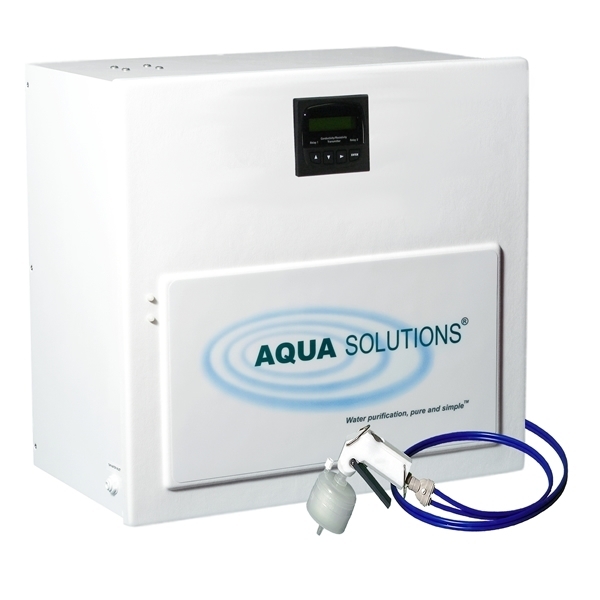

The system produces 18.2 megohm-cm ultrapure, reagent grade water free of pyrogen, endotoxin, RNase and DNase at a flow rate of 2-Liters/minute. Continuous recirculation is utilized to maintain maximum water purity. Therefore, ultrapure water is instantly available on demand up to 7 feet from the system via the included hand held remote dispenser. The digital Conductivity/Resistivity monitor displays the water quality and a Green LED indicates that the water quality is above the acceptable purity. When the water quality drops below the desired purity, a Red LED alerts the user that it is time to replace the filters.
This affordable lab water system is simple to install and easy to maintain. The system cabinet can be bench, shelf or wall mounted without the use of costly wall mounting brackets. It has a 2-year warranty in most countries and is proudly made in the USA.
A High Flow/High Capacity (8-12 Liters/Min) version of this system is also available (see Model: 2035B).
This Biological Grade Type I Laboratory Water Purification System is designed for use on feed water that has been pretreated via reverse osmosis and/or ion exchange and contains less than 20 PPM of total dissolved solids.
More Information
All AQUA SOLUTIONS Biological Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.
Continuous recirculation ensures superior water quality at all times
Highest flow rate (2-Liters per Minute) of any comparably sized system
Highest ion exchange capacity (2,000 grains) of any comparable system
Built-in activated carbon prefilter reduces particulates & organics for longer DI module life
Digital, temp-compensated resistivity monitor with red/green LED alarm set point
Teflon recirculating remote dispenser with 0.22 µm final filter capsule
System can be bench, shelf or wall-mounted at no extra charge
Two (2) year system warranty (US & Canada only)
Made in USA
CSA certified (US & Canada), CE marked for export to EU countries
Item is on GSA Contract # GS-07F-5799R
System Specifications
Cabinet Dimensions
Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Mounting
Bench, Shelf, or Wall (no additional charge)
Operating Weight
45 lbs (21 kg) cabinet only
Input Power
Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacle within 5 ft. (1.5 meters) of the right side of the system cabinet
System Power Source
Switching power supply - 12 VDC at 2.5 Amps
Minimum Inlet Pressure
30 psi (2 bar)
Maximum Inlet Pressure
100 PSI (6.6 bar)
Total shipping weight
50 lbs (23 kg)
Pure Water Specifications
Resistivity
18.2 Megohm-cm - Ultrapure
Conductivity
0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Details
Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water
TOC
< 50-PPB
Particulates
0.22-Micron
Bacteria
< 1 cfu/ml
Pyrogen/Endotoxin
< 0.001 EU/ml
RNAase
< 0.01 ng/ml
DNAase
< 4 pg/µL
Flow Rate
2-LPM
Feed Water
Feed Water Quality
For operation on water that has been pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids)
Water Connection
User supplied 1/4" or 3/8" NPTF valve (1/4" Tube X 1/4" NPTM & 1/4'" Tube X 3/8" NPTM fittings included with system)
Inlet Connection
1/4" Tube fitting (20 ft. of tubing supplied with system)
Optional Upgrades
UV2006S
UV Sterilizer - Prevents the growth of microorganisms within the system
UV2006X
Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to
Consumables
2613M1T
Required Purification Kit - Includes two 2613TO High purity, High capacity, Low TOC DI modules, a CC2000 Carbon Pre-filter, and a DC2002 0.22-Micron Final Filter
