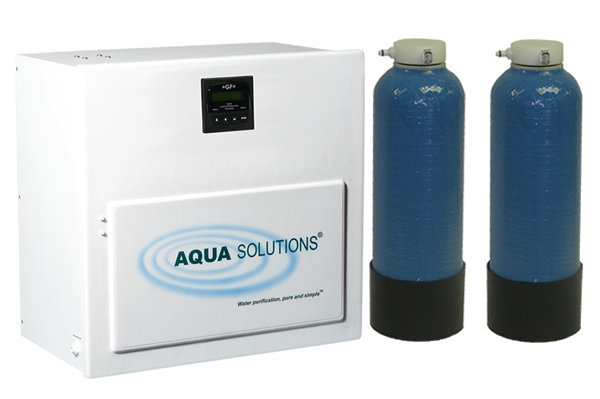

Model: 2035A - Analytical Grade Type I DI System

This AQUA SOLUTIONS lab water purification system produces Ultrapure 18.2 Megohm-cm Reagent Grade DI Water at a flow rate of 8-12 LPM.

This AQUA SOLUTIONS unit operates on pretreated water. For ordinary tapwater operations, see Model: 2036A. Laboratory water purification systems are also available with a built-in sterilizer (Model: 2035AU), or with a built-in Dual wavelength UV Oxidizer/Sterilizer (Model: 2035AL).

The Purification Kit Number 2635M1T is required to ensure optimal performance of this system.

This system is for use with water that has been pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids). Type I Ultrapure water is instantly available on demand up to 7 feet from the system via the included remote dispensing valve with .22-Micron absolute final filter. The cabinet can be bench, shelf or wall-mounted at no extra charge.

More Information

All AQUA SOLUTIONS Analytical Grade Type I DI Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.

Features and Benefits

  • Made in the USA
  • 6,000 Grains as CaCO3 to a 0.02-Megohm end point
  • Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
  • Ultrapure water is available on demand up to 20 ft. from the system via the included dispensing valve
  • Final Filtration is 0.22 micron (absolute) capsule - Part # - DC2022
  • This item is on our GSA Contract # GS-07F-5799R
  • Two (2) year system warranty (US & Canada only)

Pure Water Specifications

Resistivity 18.2 Megohm-cm - Ultrapure
Conductivity 0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Details Analytical - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water
TOC < 50-PPB
Flow Rate Details 8-12 Liters/minute
Particulates 0.1-Micron
Bacteria < 1 cfu/ml
Flow Rate 8-12 LPM

Feed Water

Feed Water Quality For operation on water that has been pretreated via reverse osmosis, distillation or deionization by a central or point-of-use pretreatment system, and contains less than 20 PPM of TDS (total dissolved solids)
Water Connection User supplied 1/2" NPTF valve (1/2'" Tube X 1/2" NPTM fitting included with system)
Inlet Connection 1/2" Tube fitting (20 ft. of tubing supplied with system)

Optional Upgrades

UV2006S-2 UV Sterilizer - Prevents the growth of microorganisms within the system
UV2006X-2 Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to
(2) UF2000 Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase

System Specifications

Cabinet Dimensions Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Mounting Bench, Shelf, or Wall (no additional charge)
Operating Weight 75 - 100 lbs (34 - 45 kg) cabinet only
Input Power Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacle within 5' of the right side of the system cabinet
System Power Source Switching power supply - 12 VDC at 2.5 Amps
Minimum Inlet Pressure 30 psi (2 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total shipping weight 50 lbs (23 kg)

Consumables

2635M1T Required Purification Kit - Includes a 2613TO High purity, High capacity DI module, a CN1001MP Sediment Pre-filter, and a DC2022 0.22-Micron Final Filter
DC2022 0.22 micron (absolute) capsule
CC1050 10" 1-Micron Activated Carbon Prefilter
