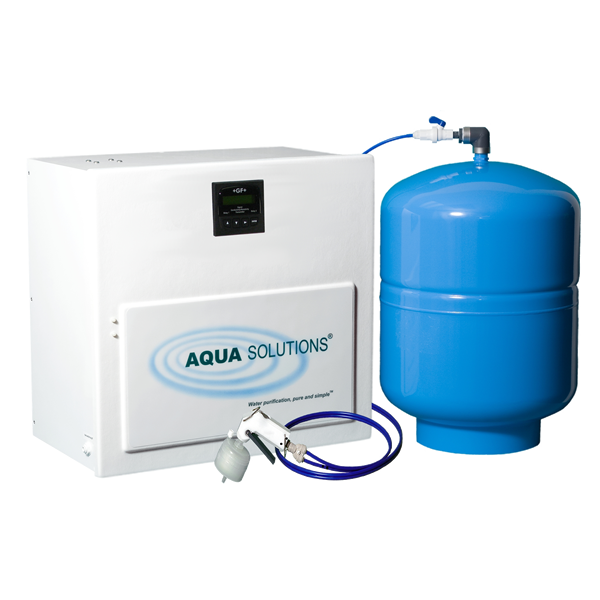

Model: RODI-C-12A - Analytical Grade Type I DI System with Built-in RO Pre-Treatment

The 10-LPH reverse osmosis portion of this system reduces operating costs by economically removing ~95% of the contaminants from the incoming tap water. The RO water is stored in the included 42-Liter pressurized tank that prevents the risk of airborne contamination and eliminates the need for additional feed pumps and tank filters.

The Type I portion of this system produces 18.2 megohm-cm ultrapure, reagent grade water at a flow rate of 2-Liters/minute. Continuous recirculation is utilized to maintain maximum water purity. Therefore, ultrapure water is instantly available on demand up to 7 feet from the system via the provided hand held remote dispenser. The digital Conductivity/Resistivity monitor displays the water quality and a Green LED indicates that the water quality is above the acceptable purity. When the water quality drops below the desired purity, a Red LED alerts the user that it is time to replace the filters.

This affordable lab water system is simple to install and is easily maintained by the user. The system cabinet can be bench, shelf or wall mounted and the RO storage tank can be installed up to 20 feet from the system. An additional RO membrane can be added to the system to increase RO production and the storage tank can be upgraded to increase capacity.

The system has a 2-year warranty in most countries and is proudly made in the USA.

High Flow/High Capacity (8-12 Liters/Min) versions of this system are also available (see Models: RODI-2000-01A or RODI-2000-03A).

REQUEST A QUOTE

This compact, combination Reverse Osmosis plus Type I Analytical Grade DI System is utilized in operations using virtually any quality tap water that contains less than 1,000 PPM of total dissolved solids.

More Information


All AQUA SOLUTIONS Analytical Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.

Features and Benefits

  • Continuous recirculation ensures superior water quality at all times
  • Highest flow rate (2-Liters per minute) of any comparably sized system
  • Highest ion exchange capacity (2,000 Grains) of any comparable system
  • Ultrapure water available on demand up to 7 ft. from the system via the provided remote dispenser
  • Built-in activated carbon prefilter
  • Digital, temperature-compensated resistivity monitor with red/green LED alarms
  • Teflon recirculating remote dispenser with 0.22 µm final filter capsule
  • System can be bench, shelf or wall-mounted at no extra charge
  • Two (2) year system warranty (US & Canada only)
  • CSA certified (US & Canada) and CE marked for export to EU countries
  • Item is on our GSA Contract # GS-07F-5799R
  • Made in USA

Pure Water Specifications

Resistivity 18.2 megohm-cm - Ultrapure
Conductivity 0.056 MicroSeimens/cm - Ultrapure
Ultrapure Grade Details Analytical - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water
TOC < 10 ppb
Particulates < 0.22 micron
Bacteria < 1 cfu/ml
Flow Rate 2-LPM

RO Water Specifications

RO Production 10-LPH (Standard) - 20-LPH with additional RO membrane - Part # ROC-1020CU - Increases RO production from 10 to 20 LPH
Storage Capacity 42-Liter Pressurized Storage Tank (Included) Part # RODI12-042: 15 1/2" (394mm) dia. x 24" (610mm)

Feed Water

Feed Water Quality For operation on any quality tap water containing less than 1,000 PPM of total dissolved solids.
Water Connection User supplied 1/4" or 3/8" NPTF valve (1/4" Tube X 1/4" NPTM & 1/4'" Tube X 3/8" NPTM fittings included with system)
Inlet Connection 1/4" Tube fitting (20 ft. of tubing supplied with system)

Optional Upgrades

UV2006S UV Sterilizer - Prevents the growth of microorganisms within the system
UV2006X Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to
UF2000 Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase
CH1004-PF 10" Pre-filter assembly with 5-Micron filter
ROC-1020CU Increases RO production from 10 to 20 LPH with the addition of a second RO Membrane
RODI2-060TU-042 Increases RO storage capacity from 42 to 60 Liters
RODI2-130TU-042 Increases RO storage capacity from 42 to 130 Liters
RODI2-200TU-042 Increases RO storage capacity from 42 to 200 Liters

System Specifications

Cabinet Dimensions Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm)
Mounting Bench, Shelf, or Wall (no additional charge)
Operating Weight 75 - 100 lbs (34 - 45 kg) cabinet only
Input Power Requires one 100-240 VAC, 50/60Hz, 1.0A grounded receptacle within 5' of the right side of the system cabinet
System Power Source Switching power supply - 12 VDC at 2.5 Amps
Minimum Inlet Pressure 10 PSI (0.67 bar)
Maximum Inlet Pressure 100 PSI (6.6 bar)
Total Shipping Weight 100-150 lbs (45 - 68 kg)

Consumables

2613M1T-A Required Purification Kit - Includes a 2613TO High purity, High capacity DI module and a DC2002 0.22 micron Final Filter
CC1050 10" 1 micron Activated Carbon Prefilter
DC2002 0.22 micron Final Filter
CN1005MP 10" 5 micron Sediment Pre-Filter - For use with optional CH1004-PF
