Model: RODI-2000-01B - High Flow Type I Biological Grade RO+DI System
This combination Reverse Osmosis System and 8-12 Liters/minute DI System is utilized in operations using virtually any quality tap water.

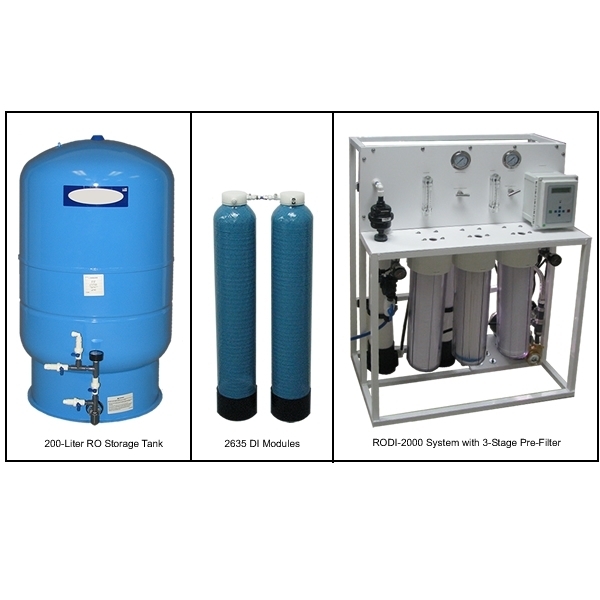

The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly. The RO portion of the system will economically remove >97% of the contaminants from the incoming water, and will produce RO pretreated water at the rate of ~ 1-GPM. The RO water is stored in a 200-Liter pressurized storage tank for use by the DI portion of the system.
The pressurized tank eliminates the risk of airborne contamination and the need for a feed pump. The DI portion of the system produces up to 18.2-Megohm-cm water that is free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 8-12 Liters/minute. DI water production is limited by the storage capacity and RO production. This system features continuous recirculation to maintain maximum water purity and a digital conductivity/resistivity meter to monitor the DI water quality. The meter has a green LED to indicate that the water quality is acceptable and a red LED that alerts the user when the water quality drops below the desired level.
All AQUA SOLUTIONS Biological Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water. Since ordinary tap water contains 5-25 times the impurities of pretreated water, these tap water systems have lower overall capacity than pre-treated water systems.
Features and Benefits:
- Ultrafilter removes Pyrogen, Endotoxin, RNase and DNase
- High ion exchange capacity (6,000-12,000 Grains) CaCO3 to a 0.02-Megohm end point
- Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
- Final filtration of 0.22 µm capsule (Part# - DC2022)
- One (1) year system warranty
- This item is on our GSA Contract # GS-07F-5799R
- Made in USA
Pure Water Specifications
| Resistivity | 18.2 Megohm-cm - Ultrapure |
| Conductivity | 0.056 MicroSeimens/cm - Ultrapure |
| Ultrapure Grade | Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water |
| TOC | < 50-PPB |
| Flow Rate | 8-12 Liters/minute |
| Particulates | 0.1-Micron) |
| Bacteria | - |
| Pyrogen/Endotoxin | < 0.001 EU/ml |
| RNase | |
| DNase | 4 pg/micron L |
RO Water Specifications
| RO Production | 1-Gallon/Minute |
| Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
| Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids |
| Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
| Inlet Connection | 3/4” NPTF or NPTM |
Optional Upgrades
| UV2006S8 | UV Sterilizer - Prevents the growth of microorganisms within the system |
| UV2006X8 | Dual wavelength UV Oxidizer/Sterilizer - Dual wavelength UV Oxidizer/Sterilizer - Reduces TOC levels to |
| UF2000 | N/A |
System Specifications
| RO Membranes | One (1) Part # CR4040-HF4 |
| Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
| Mounting | Floor |
| Operating Weight | 280 lbs (127 kg) Systems/Frame only |
| Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
| Minimum Inlet Pressure | 35 PSI (2.4 bar) |
| Maximum Inlet Pressure | 100 PSI (6.6 bar) |
| Total shipping weight | 500-600 lbs (227-272 kg) |
Consumables
| CNBB7525MP | 20" 75/25-micron prefilter |
| CNBB2005PP | 20" 5-micron prefilter |
| CCBB1030 | 20" 3-micron activated carbon |
| CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
| 2635M1T-A | Required Purification Kit - Includes a 2635TO High Purity DI module and a DC2022 0.22-Micron Final Filter |
| 2635M1L-A | N/A |
| 2635M2T-A | Required Purification Kit - Includes two 2635TO High Purity, High capacity DI Modules and a DC2022 0.22-Micron Final Filter |
| 2635M2L-A | N/A |
| DC2022 | 0.22-Micron Final Filter |
| UV2006LS8 | N/A |
| UV2006LX8 | N/A |
| UF2000RM | Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase |
