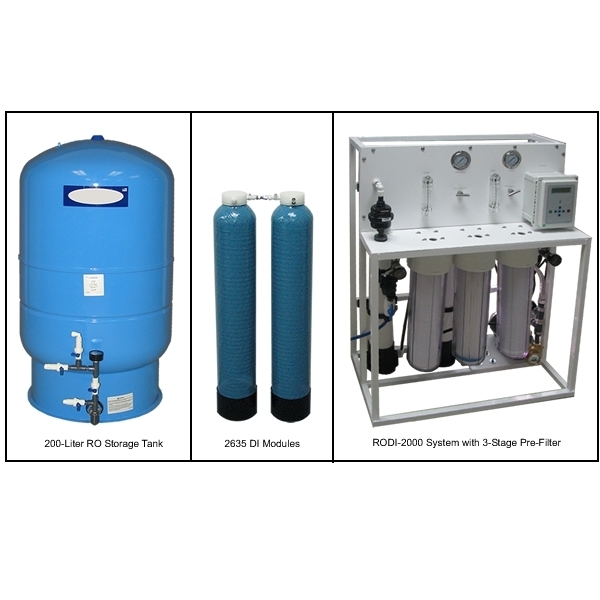

Model: RODI-2000-01AU - High Flow Analytical Grade Type I RO+DI System with UV Sterilizer
The 1-GPM reverse osmosis portion of this system reduces operating costs by economically removing ~97% of the contaminants from the incoming tap water. The RO water is stored in the provided 200-Liter pressurized tank that prevents the risk of airborne contamination and eliminates the need for additional feed pumps and tank filters. The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly.
The Type I portion of this system produces 18.2 megohm-cm ultrapure, reagent grade water at a flow rate of 8-12 Liters/minute and features continuous recirculation to maintain maximum water purity. Therefore, pure water is instantly available on demand. A built-in UV Sterilizer prevents the growth of microorganisms within the system, and alerts you when it is time to change the lamp. The system can be setup to feed a single dispensing point or multiple dispensing points via a small (200 linear foot) circulation loop. A variety of optional faucets, valves, and dispensers are available for use with the system. A digital Conductivity/Resistivity monitor displays the water quality and a Green LED indicates that the water quality is above the acceptable purity. When the water quality drops below the desired purity, a Red LED alerts the user that it is time to replace the filters.
This affordable lab water system is simple to install and easy to maintain. It features fully automatic operation, has a 1-year warranty, and is proudly made in the USA.
A higher production 2-Gallon/minute versions of this system is also available (Model: RODI-2000-03AU).
All AQUA SOLUTIONS Analytical Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.
Features and Benefits:
- Fully automatic operation
- High ion exchange capacity (6,000-12,000 Grains)
- Built-in three stage pre-filter assembly
- Continuous recirculation is utilized to ensure water quality
- Built-in UV Sterilizer prevents the growth of microorganisms within the system
- Dual wavelength reduces TOC levels to
- High capacity DI modules
- Dispensing value with 0.22 µm final filter capsule
- One (1) year warranty
- Made in USA
Pure Water Specifications
Resistivity | 18.2 Megohm-cm - Ultrapure |
Conductivity | 0.056 MicroSeimens/cm - Ultrapure |
Ultrapure Grade | Analytical - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I Water |
TOC | < 50-PPB |
Flow Rate | 8-12 Liters/minute |
Particulates | < 1/ml (less than 0.22 micron) |
Bacteria | |
Pyrogen/Endotoxin | N/A |
RNase | N/A |
DNase | N/A |
RO Water Specifications
RO Production | 1-Gallon/Minute |
Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids |
Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
Inlet Connection | 3/4” NPTF or NPTM |
Optional Upgrades
UV2006S8 | N/A |
UV2006X8 | Dual wavelength UV Oxidizer/Sterlizer - Reduces TOC Levels to |
UF2000 | Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase |
System Specifications
RO Membranes | One (1) Part # CR4040-HF4 |
Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
Mounting | Floor |
Operating Weight | 280 lbs (127 kg) Systems/Frame only |
Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
Minimum Inlet Pressure | 35 PSI (2.4 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total shipping weight | 500-600 lbs (227-272 kg) |
Consumables
CNBB7525MP | 20" 75/25-micron prefilter |
CNBB2005PP | 20" 5-micron prefilter |
CCBB1030 | 20" 3-micron activated carbon |
CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
2635M1T-A | Required Purification Kit - Includes a 2635TO High Purity DI module and a DC2022 0.22-Micron Final Filter |
2635M1L-A | N/A |
2635M2T-A | Required Purification Kit - Includes two 2635TO High Purity, High capacity DI Modules and a DC2022 0.22-Micron Final Filter |
2635M2L-A | N/A |
DC2022 | 0.22-Micron Final Filter |
UV2006LS8 | UV Sterilizer Lamp |
UV2006LX8 | N/A |
UF2000RM | N/A |
