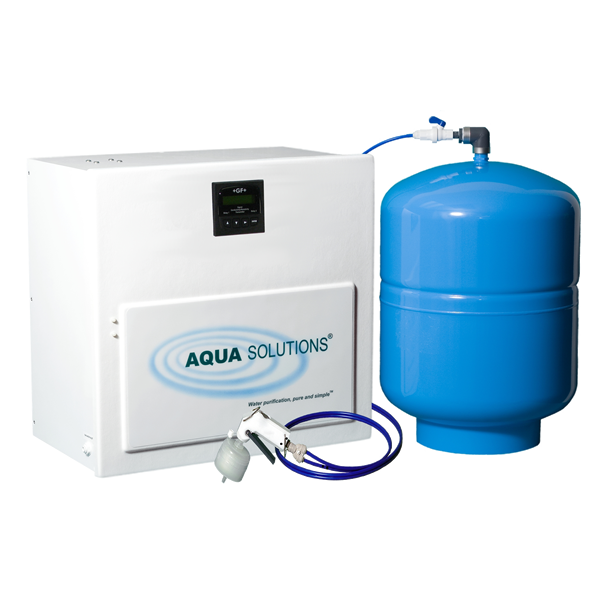

Model: RODI-C-12BL - Biological Grade Ultra-Low TOC Type I DI System with Built-in RO Pre-Treatment
The 10-LPH reverse osmosis portion of this system reduces operating costs by economically removing ~95% of the contaminants from the incoming tap water. The RO water is stored in an included 42-Liter pressurized tank that prevents the risk of airborne contamination and eliminates the need for additional feed pumps and tank filters.
The Type I portion of this system produces 18.2 megohm-cm ultrapure, reagent grade water that is free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 2-Liters/minute. It includes a built-in Ultrafilter and features continuous recirculation to maintain maximum water purity. Therefore, ultrapure water is instantly available on demand up to 7 feet from the system via the included hand held remote dispenser. A built-in dual wavelength UV Oxidizer/Sterilizer reduces TOC levels to "5 PPB and prevents the growth of microorganisms within the system.
This affordable lab water system is simple to install and easy to maintain. The system cabinet can be bench, shelf or wall mounted and the RO storage tank can be installed up to 20 feet from the system. An additional RO membrane can be added to the system to increase RO production and the storage tank can be upgraded to increase capacity.
The system has a 2-year warranty in most countriesis and is proudly made in the USA.
This system produces 18.2 Megohm-cm type I ultrapure, reagent grade water that is free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 8-12 Liters/minute. The unit is ulitized in operations using pretreated feed water that contains less than 20 PPM of total dissolved solids. This laboratory water purification system includes a built-in 5,000 MWCO ultrafilter cartridge and a built-in dualwavelength UV Oxidizer/Sterilizer that reduces TOC levels to < 5 PPB, for microorganism growth prevention within the system.
All AQUA SOLUTIONS Biological Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.
Features and Benefits:
- Built-in 5,000 MWCO ultrafilter (UF) module
- Continuous recirculation ensures superior water quality at all times
- Highest flow rate (2-Liters per minute) of any comparably sized system
- Highest ion exchange capacity (2,000 Grains) of any comparable system
- Built-in activated carbon prefilter reduces particulates & organics for longer DI module life
- Ultrafilter removes Pyrogen, Endotoxin, RNase and DNase
- Dual wavelength reduces TOC levels to
- Ultrapure water available on demand up to 7 ft. from the system via the included remote dispenser (Part # 2700R)
- Digital, temperature-compensated resistivity monitor with red/green LED alarms
- Teflon recirculating remote dispenser with 0.22 µm final filter capsule
- System can be bench, shelf or wall-mounted at no extra charge
- Two (2) year system warranty (US & Canada only)
- CSA certified (US & Canada), CE marked for export to EU countries
- Item is on GSA Contract # GS-07F-5799R
- Made in USA
Pure Water Specifications
Resistivity | 18.2 megohm-cm - Ultrapure |
Conductivity | 0.056 MicroSeimens/cm - Ultrapure |
Ultrapure Grade Details | Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I water |
TOC | < 5 ppb - A built in dual wavelength UV Oxidizer/Sterilizer reduces TOC and prevents the growth of microorganisms within the system |
Particulates | > 0.22 micron |
Bacteria | < 1 cfu/ml |
Pyrogen/Endotoxin | < 0.001 EU/ml |
RNase | |
DNase | < 4 pg/µL |
Flow Rate | 2-LPM |
RO Water Specifications
RO Production | 10-LPH (Standard) - 20-LPH with additional RO membrane - Part # ROC-1020CU - Increases RO production from 10 to 20 LPH |
Storage Capacity | 42-Liter Pressurized Storage Tank (Included) Part #: RODI12-042 |
Feed Water
Feed Water Quality | For operation on any quality tap water containing less than 1,000 PPM of total dissolved solids |
Water Connection | User supplied 1/4" or 3/8" NPTF valve (1/4" Tube X 1/4" NPTM & 1/4'" Tube X 3/8" NPTM fittings included with system) |
Inlet Connection | 1/4" Tube fitting (20 ft. of tubing supplied with system) |
Optional Upgrades
CH1004-PF | 10" Pre-filter assembly with 5-Micron filter |
ROC-1020CU | Increases RO production from 10 to 20 LPH with the addition of a second RO Membrane |
RODI2-060TU-042 | Increases RO storage capacity from 42 to 60 Liters |
RODI2-130TU-042 | Increases RO storage capacity from 42 to 130 Liters |
RODI2-200TU-042 | Increases RO storage capacity from 42 to 200 Liters |
System Specifications
Cabinet Dimensions | Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm) |
Mounting | Bench, Shelf, or Wall (no additional charge) |
Operating Weight | 60 lbs (28 kg) cabinet only |
Input Power | Requires two 100-240 VAC, 50/60Hz, 1.0A grounded receptacles within 5' of the right side of the system cabinet |
System Power Source | Switching power supply - 12 VDC at 2.5 Amps |
Minimum Inlet Pressure | 10 PSI (0.67 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total Shipping Weight | 100-150 lbs (45 - 68 kg) |
Consumables
2613M1L-A | Required Purification Kit - Includes a 2613TO High purity, High capacity DI module and a DC2002 0.22 micron Final Filter |
CC1050 | 10" 1 micron Activated Carbon Prefilter |
UV2006LX | UV Oxidizer/Sterilizer Lamp |
UF2000RM-Q | 0.05 micron (5,000 MWCO) Ultrafilter - Removes Pyrogen, Endotoxin, RNase, & DNase |
DC2002 | 0.22 micron Final Filter |
CN1005MP | 10" 5 micron Sediment Pre-Filter - For use with optional CH1004-PF |
