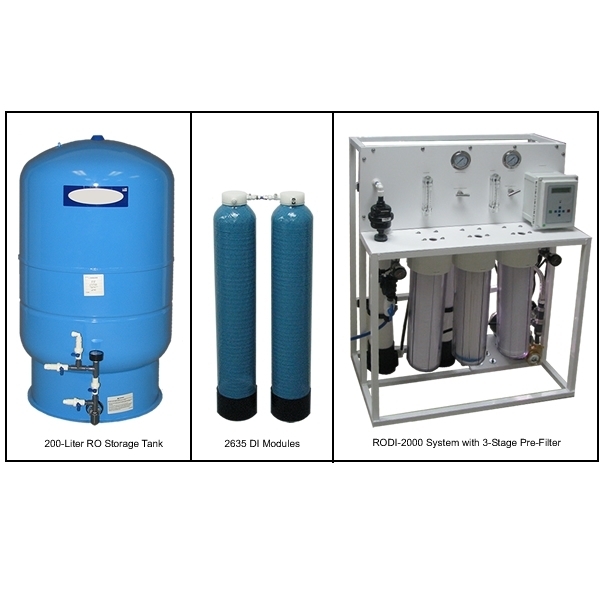

Model: RODI-2000-01BL - High Flow Type I Biological Grade Low TOC RO+DI System With UV Oxidizer/Sterilizer
This combination Reverse Osmosis System and 8-12 Liters/minute DI System is uutilized in operations involving virtually any quality tap water. The system is mounted on a welded aluminum frame and includes a built-in three stage pre-filter assembly. The RO portion of the system will economically remove >97% of the contaminants from the incoming water and will produce RO pretreated water at the rate of ~ 1-GPM. The RO water is stored in a 200-Liter pressurized storage tank for use by the DI portion of the system.
The pressurized tank eliminates the risk of airborne contamination and the need for a feed pump. The DI portion of the system produces up to 18.2-Megohm-cm water free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 8-12 Liters/minute. DI water production is limited by the storage capacity and RO production. This system features continuous recirculation to maintain maximum water purity and a digital conductivity/resistivity meter to monitor the DI water quality.
The meter has a green LED to indicate that the water quality is acceptable and a red LED that alerts the user when the water quality drops below the desired level. A built-in dual wave length UV Oxidizer/Sterilizer reduces TOC levels, prevents the growth of microorganisms within the system, and alerts the user when it is time to change the lamp.
This system produces 18.2 Megohm-cm type I ultrapure, reagent grade water that is free of Pyrogen, Endotoxin, RNase and DNase at a flow rate of 8-12 Liters/minute. The unit is ulitized in operations using pretreated feed water that contains less than 20 PPM of total dissolved solids. This laboratory water purification system includes a built-in 5,000 MWCO ultrafilter cartridge and a built-in dualwavelength UV Oxidizer/Sterilizer that reduces TOC levels to < 5 PPB, for microorganism growth prevention within the system.
All AQUA SOLUTIONS Biological Grade Type I DI Laboratory Water Purification Systems produce purified water that meets or exceeds ASTM, CAP and CLSI specifications for Type I reagent grade water.
Features and Benefits:
- Ultrafilter removes Pyrogen, Endotoxin, RNase and DNase
- High ion exchange capacity (6,000 Grains) CaCO3 to a 0.02-Megohm end point
- Dual wavelength reduces TOC levels to < 5 PPB and prevents the growth of microorganisms within the system
- Continuous recirculation is utilized to ensure water quality and prevent the growth of microorganisms within the system
- Final filtration of 0.22 µm (absolute) capsule - Part # DC2022
- One (1) year system warranty
- Made in USA
Pure Water Specifications
Resistivity | 18.2 Megohm-cm - Ultrapure |
Conductivity | 0.056 MicroSeimens/cm - Ultrapure |
Ultrapure Grade | Biological - Meets or exceeds ASTM, CAP, CLSI, and USP Specifications for Type I Water |
TOC | < 10-PPB - A built in dual wavelength UV Oxidizer/Sterilizer reduces TOC levels to |
Flow Rate | 8-12 Liters/minute |
Particulates | 0.1-Micron) |
Bacteria | |
Pyrogen/Endotoxin | < 0.001 EU/ml |
RNase | |
DNase |
RO Water Specifications
RO Production | 1-Gallon/Minute |
Storage Capacity | RODI2-200: 200-Liter Pressurized Tank - Diameter - 26" (660 mm) Height - 48" (1,219 mm) |
Feed Water
Feed Water Quality | For Operation on any quality tap water containing less than 1,000 PPM of total dissolved solids |
Water Connection | User supplied 3/4" line with 1/2" or 3/4" valve |
Inlet Connection | 3/4” NPTF or NPTM |
Optional Upgrades
UV2006S8 | N/A |
UV2006X8 | N/A |
UF2000 | N/A |
System Specifications
RO Membranes | One (1) Part # CR4040-HF4 |
Frame Dimensions | Width - 36" (914mm), Depth - 19" (482mm) Height - 48" (1,219mm) |
Mounting | Floor |
Operating Weight | 280 lbs (127 kg) Systems/Frame only |
Input Power | 120 or 240 VAC - 15%+10%, 50/60 Hz. 25 Watts |
Minimum Inlet Pressure | 35 PSI (2.4 bar) |
Maximum Inlet Pressure | 100 PSI (6.6 bar) |
Total shipping weight | 500-600 lbs (227-272 kg) |
Consumables
CNBB7525MP | 20" 75/25-micron prefilter |
CNBB2005PP | 20" 5-micron prefilter |
CCBB1030 | 20" 3-micron activated carbon |
CR4040-HF4 | High Flow, Low Pressure TFC Membrane |
2635M1T-A | N/A |
2635M1L-A | Required Purification Kit - Includes a 2635TO High Purity, High capacity DI Module and a DC2022 0.22-Micron Final Filter |
2635M2T-A | NA |
2635M2L-A | Required Purification Kit - Includes two 2635TO High purity, High capacity DI Modules and a DC2022 0.22 Mircron Final Filter |
DC2022 | 0.22-Micron Final Filter |
UV2006LS8 | N/A |
UV2006LX8 | UV Oxidizer Lamp |
UF2000RM | Ultrafilter - Removes Pyrogen, Endotoxin, RNase & DNase |
