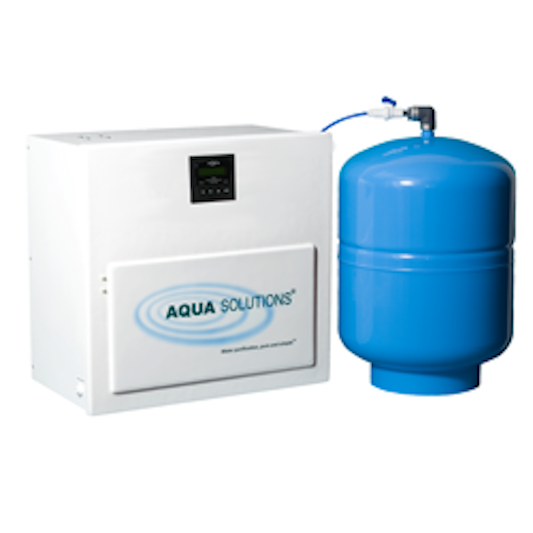

Model RO2121
This compact Laboratory Reverse Osmosis ("RO") System is for operation on virtually any quality tap water, containing up to 1,000 PPM of TDS.
It economically produces 10-Liters/hour of RO purified water by removing >95% of the contaminants in the incoming tap water.
The system includes a built-in, high-capacity activated carbon pre-filter and a 42-Liter pressurized tank to store the RO purified water.
The system features fully automatic operation and complete instrumentation. This 12 VDC system is certified by CSA for the US & Canada and CE marked for export to EU countries.
AQUA SOLUTIONS' Reverse Osmosis Pretreatment Systems include a pressurized RO storage tank, which eliminates the need for level controls, overflow piping, and transfer pumps.
Features and Benefits:
- Made in the USA.
- The systems includes 130-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump.
- Built-in 1-Micron Activated Carbon
- Built-in TDS Meter to monitor water quality
- Certified by CSA for the US & Canada, CE marked for export to EU countiries.
- One (1) year warranty.
RO Water Specification
RO Production | 10-Liters Per Hour |
Rejection Rate (TDS) | >95% |
Feed Water
Feed Water Quality | Tap water containing <1,000 PPM of TDS |
Water Connection | User supplied 1/4" or 3/8" NPTF valve (3/8" Tube X 1/4" NPTM & 3/8" Tube X 3/8" NPTM fittings included with system) |
Inlet Connection | 1/4" Tube fitting (20ft. of 1/4" of tubing supplied with system) |
Features and Benefits
RO Production | 10-Liters Per Hour |
Pressurized Storage | The system include 42-Liter pressurized storage tank reduces the risk of contamination and eliminates the need for a transfer pump |
Pre-filter | Built-in 1-Micron Activated Carbon |
Country of Origin | Made in the USA |
TDS Monitor | The System has a built in TDS Meter to monitor water quality |
Warranty | 1 Year |
Certification | Certified by CSA for the US & Canaba, CE marked for export to EU countries |
GSA | N/A |
Optional Upgrades
CH1004-PF | 10" Pre-filter assembly with 5-Micron sediment filter |
CH1004PAS | 10" Anti-Scaling Prefilter Assembly |
CH1016BB-2PF | N/A |
CH1016BB-3PF | N/A |
CH1016BB-3PF | N/A |
2700N | Remote Dispenser kit - non-recirculating type - with 0.1 micron final filter capsule |
2700N-NFC | Remote Dispenser kit - non-recirculating type - no final filter capsule |
DC2002 | 1 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2004 | 2 inch 0.1-Micron (absolute) Final Filter Capsule |
DC2022 | High flow 0.22-Micron (absolute) Filter Capsule |
ROT-130TU-042 | Tank upgrade: Increases storage capacity from 42 to 130 Liters |
ROT-200TU-130 | N/A |
ROT-200TU-042 | Tank upgrade: Increases storage capacity from 42 to 200 Liters |
Pressurized Storage Tanks
ROT-200 | N/A |
Cone Bottom Tanks
ROT-060XP | N/A |
ROT-100XP | N/A |
ROT-200XP | N/A |
ROT-300XP | N/A |
System Specifications
RO Membranes | One (1) Part #CR1812H1 |
Cabinet Dimensions | Width - 20 in (508 mm), Depth - 12 in (305 mm) Height - 20 in (508 mm) |
Frame Dimensions | N/A |
Mounting | Bench, Shelf, or Wall (no additional charge) |
Operating weight | 75 - 100 lbs (34 - 45 kg) cabinet only |
Input Power | Requires one 100-240 AC, 50/60Hz, 1.0A grounded receptacles within 5' of the right side of the system cabinet |
System power source | 12 VAC Power supply |
Minimum inlet pressure | 25 PSI (1.7 bar) |
Maximum inlet pressure | 100 PSI (6.6 bar) |
Total shipping weight | 100-150 lbs (45 - 68kg) |
Consumables
CC1050 | 10" 1-Micron Activated Carbon Prefilter |
CCBB1030 | N/A |
CCBB2030 | N/A |
CN1050MP | 10" 5-Micron Sediment Pre-Filter - For use with optional CH1004-PF |
CNBB1005PL | N/A |
CNBB15005MP | N/A |
CNBB17525MP | N/A |
CNBB2005PP | N/A |
CNBB2020PP | N/A |
CNBB27525MP | N/A |
CR1812H1 | (1) 12" TFC Reverse Osmosis Replacement Cartridge |
CR4014 | N/A |
CR4040-HF4 | N/A |
